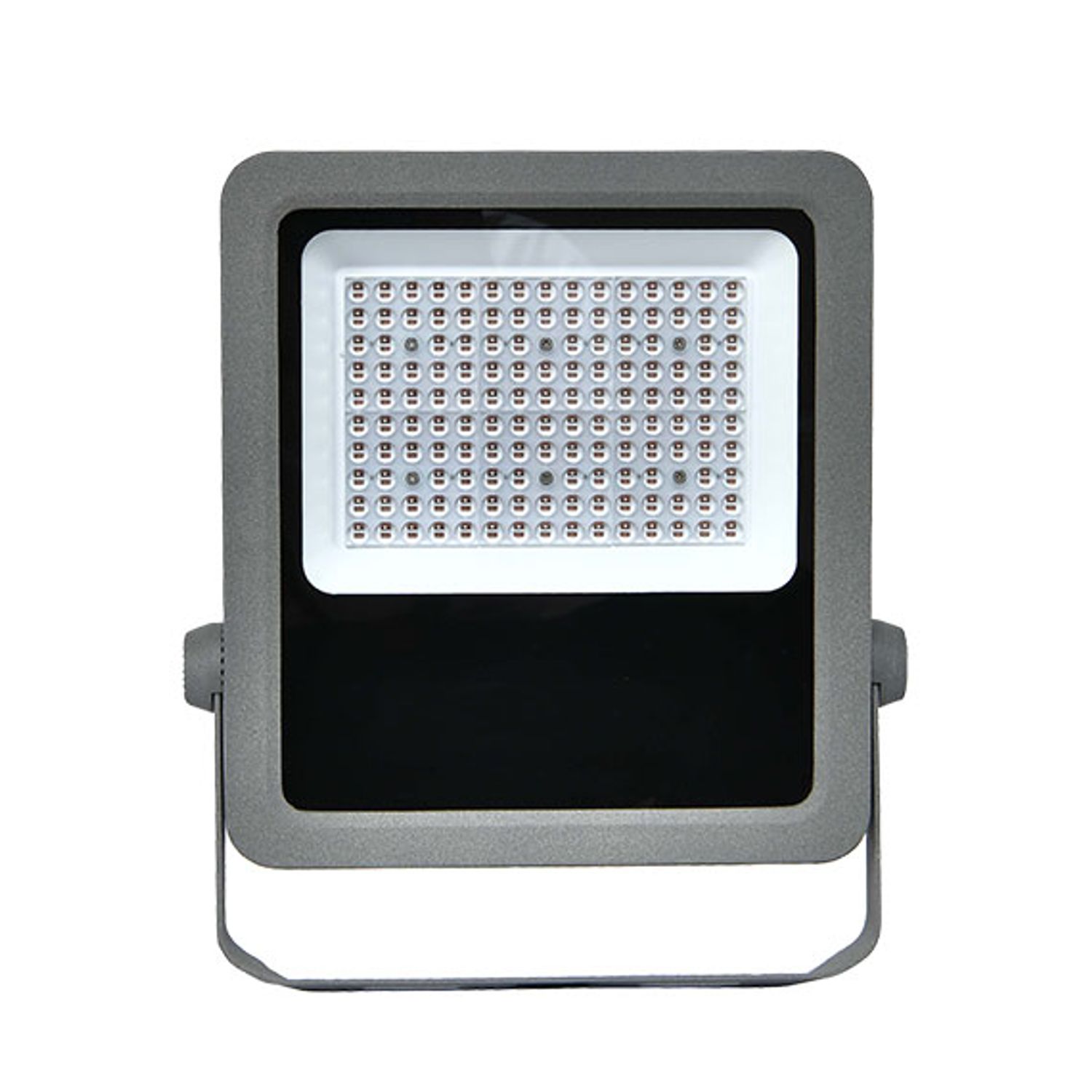

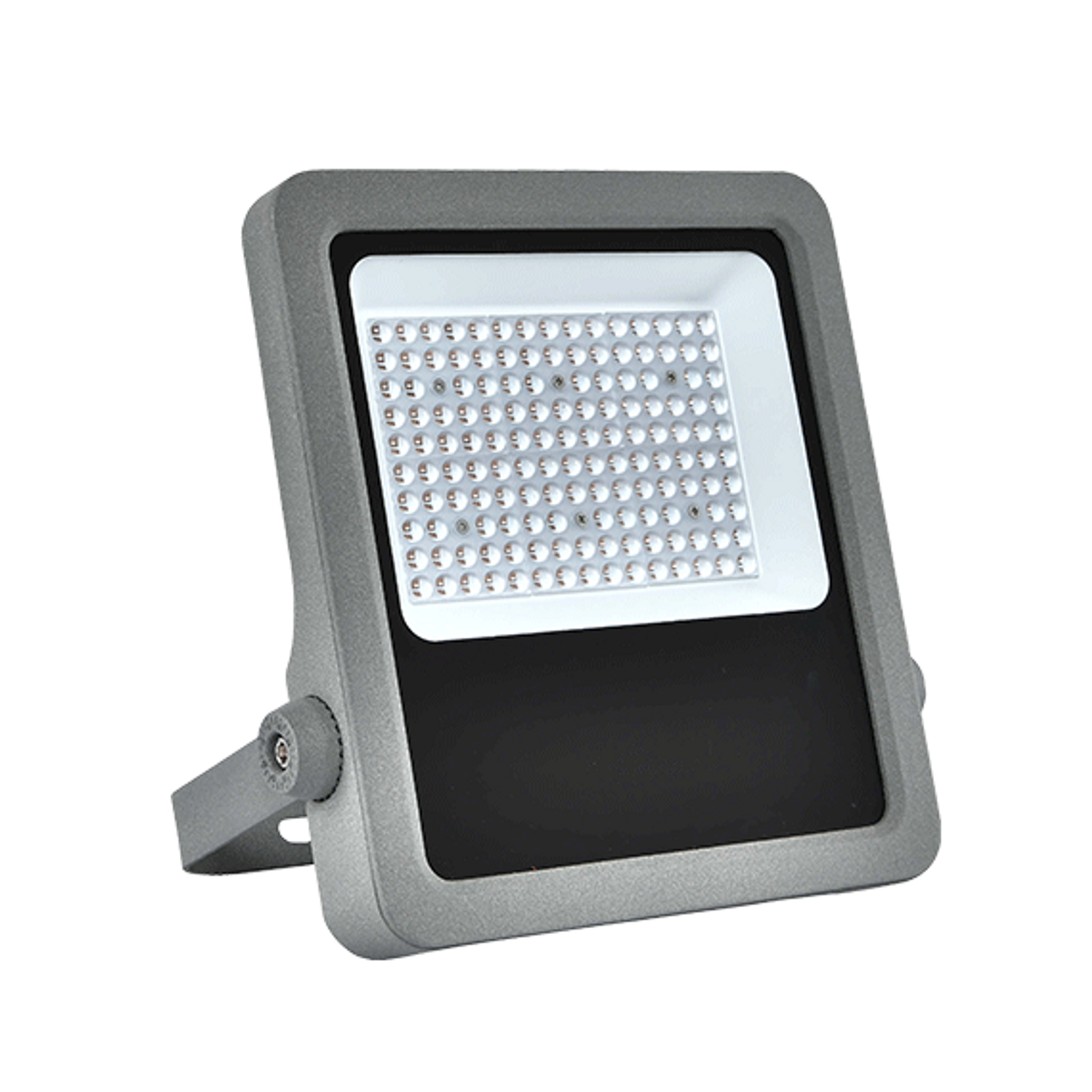

High Lumen Custom LED Flood Light, 50~400Watt, 160Lm/W, 2200K~5000K~6500K, IP65
AFL06
- The AFL06 LED Floodlight sets new standards for efficiency, boasting an impressive luminous efficacy of 160Lm/W. This exceptional efficiency ensures maximum energy savings without compromising on brightness.
- Its integrated aluminum die-casting body not only ensures durability and longevity but also provides excellent heat dissipation capabilities. This robust construction guarantees reliable performance even in challenging environments.
- The AFL06 LED Floodlight features splicing lenses with optional angles, allowing you to customize the lighting distribution to suit your specific needs.
- The AFL06 LED Floodlight offers the flexibility of using multiple modules in parallel. This feature enables easy scalability and allows you to customize the lighting output based on the requirements of your project.

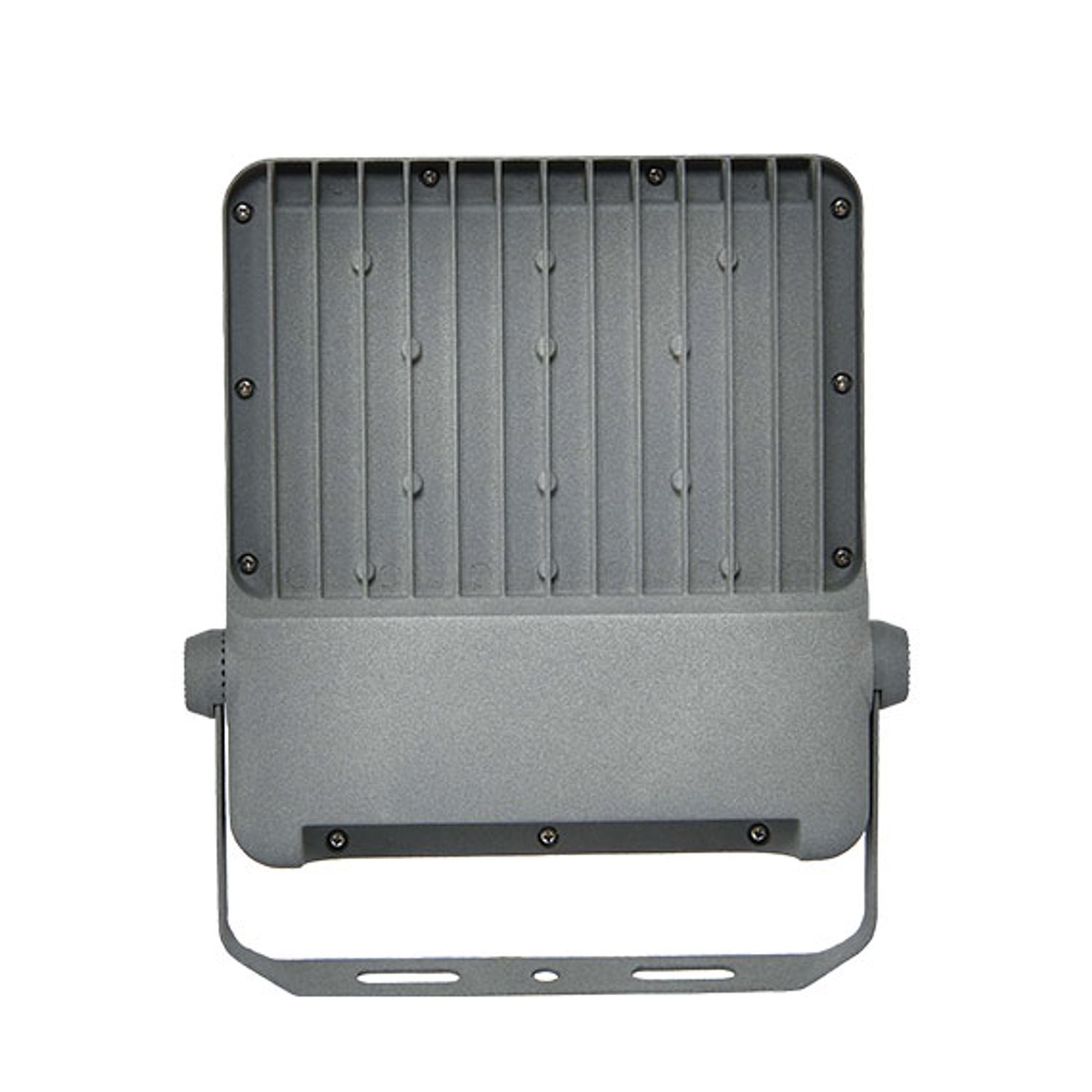

- The AFL06 LED Floodlight takes heat management to the next level. It utilizes ADC12 die-casting aluminum heat sinks and incorporates advanced finite element heat dissipation technology.
| Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Material Of Shell | Dimension（mm） |
| AFL06-A | 50W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
263*224*45 |
| AFL06-B | 100W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
315*269*50 |
| AFL06-C | 150W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
370*322*56 |
| AFL06-D | 200W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
416*352*58 |
| AFL06-E | 300W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
481*408*60 |
| AFL06-F | 400W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
490*520*65 |
PRODUCT DESCRIPTION
- The AFL06 LED Floodlight sets new standards for efficiency, boasting an impressive luminous efficacy of 160Lm/W. This exceptional efficiency ensures maximum energy savings without compromising on brightness.
- Its integrated aluminum die-casting body not only ensures durability and longevity but also provides excellent heat dissipation capabilities. This robust construction guarantees reliable performance even in challenging environments.
- The AFL06 LED Floodlight features splicing lenses with optional angles, allowing you to customize the lighting distribution to suit your specific needs.
- The AFL06 LED Floodlight offers the flexibility of using multiple modules in parallel. This feature enables easy scalability and allows you to customize the lighting output based on the requirements of your project.
- The AFL06 LED Floodlight takes heat management to the next level. It utilizes ADC12 die-casting aluminum heat sinks and incorporates advanced finite element heat dissipation technology.
SPECIFICATION
| Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Material Of Shell | Dimension（mm） |
| AFL06-A | 50W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
263*224*45 |
| AFL06-B | 100W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
315*269*50 |
| AFL06-C | 150W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
370*322*56 |
| AFL06-D | 200W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
416*352*58 |
| AFL06-E | 300W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
481*408*60 |
| AFL06-F | 400W |
AC85-265V |
160Lm/W |
>70|80|90 | 2200-6500K |
Type I | Type II | Type III |
>0.9 |
Aluminum(ADC12) |
490*520*65 |
